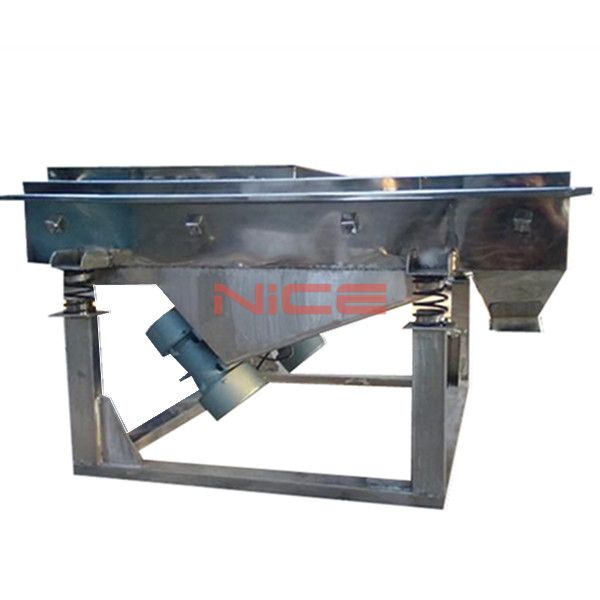

NMC515-1 linear vibrating sieve shaker
NMC515-1 linear vibrating sieve shaker is driven by two counterrotating out-of-balance motors which create a linear motion,
the material is thrown up and ahead at the same time in a straight line.
Technical Parameters:
|
Model |
NMC-520 |
NMC-525 |
NMC-530 |
NMC-535 |
NMC1020 |
NMC1025 |
|
|
Nominal size (mm) |
500×2000 |
500×2500 |
500×3000 |
500×3500 |
1000×2000 |
1000×2500 |
|
|
Material diameter (mm) |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
|
|
Vibration time times/min |
960 |
960 |
960 |
960 |
960 |
960 |
|
|
Screen slope |
1°_7° |
1°_7° |
1°_7° |
1°_7° |
1°_7° |
1°_7° |
|
|
Vibration amplitude |
3--4.5 |
3--4.5 |
3--4.5 |
3--4.5 |
3--4.5 |
3--4.5 |
|
|
Layer number |
1--6 |
1--6 |
1--6 |
1--6 |
1--6 |
1--6 |
|
|
Power(Kw) |
2×(0.4-0.75) |
2×(0.4-0.75) |
2×(0.4-0.75) |
2×(0.4-0.75) |
2×(0.4-1.1) |
2×(0.4-1.1) |
|
|
Size |
Length |
2740 |
3240 |
3740 |
4240 |
2740 |
3240 |
|
Width |
870 |
870 |
870 |
870 |
1370 |
1370 |
|
|
Height |
1400 |
1400 |
1400 |
1440 |
1440 |
1440 |
|
Model
NMC1030
NMC1035
NMC1040
NMC1530
NMC1535
NMC1540
Nominal size(mm)
1000×3000
1000×3500
1000×4000
1500×3000
1500×3500
1500×4000
Material diameter (mm)
0.074-10
0.074-10
0.074-10
0.074-10
0.074-10
0.074-10
Vibration time times/min
960
960
960
960
960
960
Leaning angle of screen
1°_7°
1°_7°
1°_7°
1°_7°
1°_7°
1°_7°
Amplitude
3--4.5
3--4.5
3--4.5
3--4.5
3--4.5
3--4.5
Layer number
1--6
1--6
1--6
1--6
1--6
1--6
Power (Kw)
2×(0.75-1.5)
2×(0.75-1.5)
2×(0.75-1.5)
2×(1.1-2.2)
2×(1.1-2.2)
2×(1.1-2.2)
Size
Length
3740
4240
4740
3740
4240
4740
Width
1370
1400
1400
1900
1900
1900
Nice Machinery is dedicated to solving the toughest screening, feeding and conveying problems while holding quality, safety and reliability paramount. We strive to consistently offer solutions that meet and often exceed customer expectations with regard to performance, dependability, ease of maintenance, price and delivery.
Nice Machinery offers the industry’s broadest range of vibrating sieves and particle separation equipment for wet, dry or slurry based material.Equipment serves the needs of all standard separation requirements and offers high capacity and efficiency with mesh size ranging from 10mm down to 25 micron for fine particle separation. Additional......[More>>]
