Description

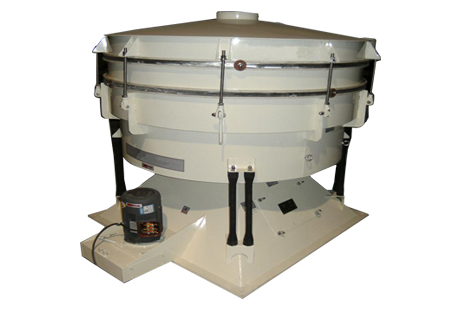

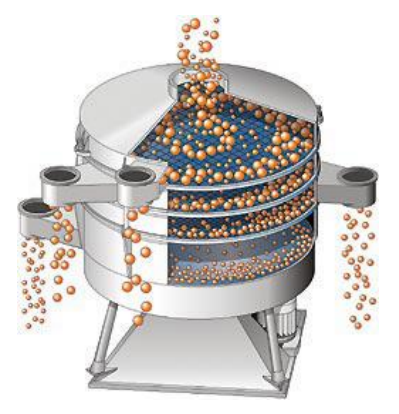

Tumbler Sieve Machine is a kind of inertial equipment with mature technology and wide-range application.Its new design Philosophy and unique structure making it the closest to manual screen machine .The swinging screen have bright application prospects for because of its perfect screening effectiveness . From the aspect of its track motion,it is a non-linear inertial vibrating screen .
The tumbler Sieve Machine is particularly applicable to classify fine particles and powder by reason of its unique structure and working principle .It is not only apply to dry sieving but also wet sieving. It is widely used in mine,building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.
the screen surface and screen frame of this equipment can be made by different meterials and designed by different technical process, and can conveniently be made into the multi-layer stacking machine.
Its whole sealing structure prevents materiel dust from moving out away, so no worry about air pollution;On the other hand,it is quite easy to install supporting facilities used for drying ,cooling .dedusting ,cleaning etc

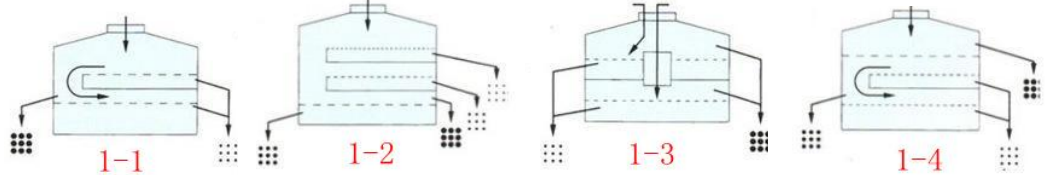

Optional screening
Gyratory screening : Two layer same aperture sieve , the sieved material can be screened once more in order to achieve s higher screening accuracy .(1-1)
Gyratory + inverse screening :the way of screening is followed to finest→finer→fine→rough, crude materials play a role in cleaning the sieve.(1-2)
Double screening : Material will be evenly distributed into two layers, so that the capacity of one set machine can be nearly doubled.(1-3)
Combined screening : general screening + gyratory screening, improve the utilization of a single set machine .(1-4)
Technical parameters
Model | NMC600-Y | NMC1000-Y | NMC1200-Y | NMC1600-Y | NMC2000-Y | NMC2400-Y | NMC2600-Y |
Diameter | 600mm | 1000mm | 1200mm | 1600mm | 2000mm | 2400mm | 2600mm |
Screening surface | 0.292m² | 0.785m² | 1.13m² | 1.83m² | 2.63m² | 4.52m² | 5.31m² |
Layer | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
Power | 0.25KW | 1.5KW | 2.2KW | 2.2KW | 4.0KW | 5.5KW | 5.5KW |
